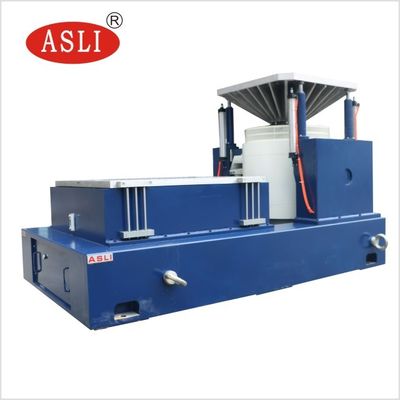

Electro-dynamic Vibration Table for Vibration Test
Product Description
Test Standard: ISO, UL, GB, EN, DIN, JIS, CNS, CE, IEC, BS, etc.
The Electro-dynamic Vibration Table is designed for discovering early faults, simulating actual working conditions, and conducting structure strength tests. With wide application range and remarkable test effects, it offers reliable performance with features including sine wave, FM, sweep, programmable functions, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, and full computer control. The equipment has undergone continuous operation for 3 months with stable performance and reliable quality.
Key Features
- Large loading capacity with maximum displacement of 51MMP-P and low working frequency (2HZ)
- Meets requirements of sinusoidal vibration test methods (fixed frequency or swept frequency) for international transport package testing
- Hydraulic wheel and linear bearing guidance with low axial rigidity
- Air spring support with large load capacity, excellent low frequency characteristics, and high stability
Technical Specifications
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) |
Moving Coil (Kg) |
Dimension of Moving Coil (mm) |
| ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ 230 |
| ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
| ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
| ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
| ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
51 |
450 |
40 |
Φ450 |
| ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
| ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
| ES-60 |
60000 |
60000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
60 |
Φ450 |
| ES-100 |
100000 |
100000 |
3-2500 |
1000 |
1.8 |
51 |
1000 |
90 |
Φ450 |
Additional Features
- High-quality base material for easy installation and smooth operation
- Multiple functions including frequency modulation, sweeping, programmable amplitude modulation, and time control
- Strong anti-magnetic and anti-interference capability with safe, reliable protection
- Computer-controlled operation with immediate data storage
- Low resistance, high performance design with high efficiency and low cost
- High reliability with low failure rate
- One year free parts maintenance with best after-sales service
- Customization options available
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services are provided to ensure the safety of your goods during transportation.
Company Profile
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, our products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both domestically and internationally, serving a worldwide customer base.
Frequently Asked Questions
Q1: Are your company a trading one or a factory?
A: Factory + trade (integration), we have our own factory.
Q2: Do you accept customization service?
A: Yes, we can offer both standard machines and customized solutions according to your requirements. We will design until you are satisfied.
Q3: What is your product warranty?
A: 1 Year warranty with lifetime services.
Q4: How about the products quality?
A: Our products comply with ISO, ASTM, GB, MIL-STD and other international standards.
For more information about our Electro-dynamic Vibration Table for Vibration Test, please don't hesitate to send your inquiry.
