Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration

1
MOQ
Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Gamma di frequenza: da 5Hz a 3500Hz
Max. Accelerazione: 1000m/s2
Max. VELOCITÀ: 1,6 m/s
Spostamento di impatto: 25 mm
Peso della bobina mobile: 6,5 kg
Direzioni di vibrazione: Verticale e orizzontale
Onda di vibrazione: seno, casuale, shock
Dimensione della bobina in movimento: Dia. 230 mm
Tipo di potenza: Elettronico
Forza sinusoidale nominale: 6000n
forza casuale stimata: 6000n
Accelerazione nominale: 1000m/s2
Velocità nominale: 1,6 m/s
Spostamento nominale: 25 mm
Max. Loading: 180 kg
Evidenziare:

1 Year Warranty Vibration Tester

,

5Hz to 3500Hz Frequency Range Vibration Shaker System

,

1000m/s2 Max Acceleration Vibration Test Equipment
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: ASLI
Numero di modello: ES-6
Termini di pagamento e spedizione
Descrizione di prodotto
Carton Package Shipping Transport Simulation Vibration Tester
The Carton Package Shipping Transport Simulation Vibration Tester performs sinusoidal vibration tests, broadband random vibration tests, and classic pulse tests (half sinusoid, trapezoid, back peak saw tooth) with shock response spectrum analysis. It can be integrated with climate chambers for comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system serves defense, aerospace, communications, electronics, appliances, transportation, and consumer goods industries. It provides comprehensive testing solutions for multiple environmental conditions including climate and mechanical stress factors.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450

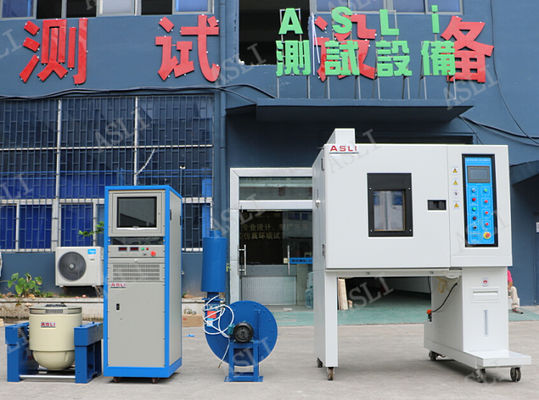

Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 0
Vertical Expander Features
The VT vertical extended-bench with specified clamps features precision engineering and high-quality materials for optimal performance. Its design ensures structural integrity and operational efficiency.

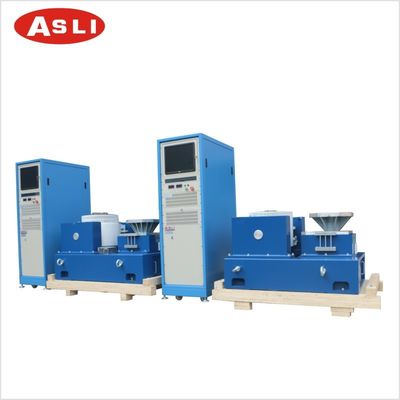

Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 1
Horizontal Expander Features
  • Enables higher acceleration and working frequency with small loading bench
  • Integral design combining horizontal bench and vibration bench for easy installation
  • Static pressure V-shape track with slope-resistant and bias-loading resistant capacity
  • Built-in oil pump with optimized structure for convenient operation

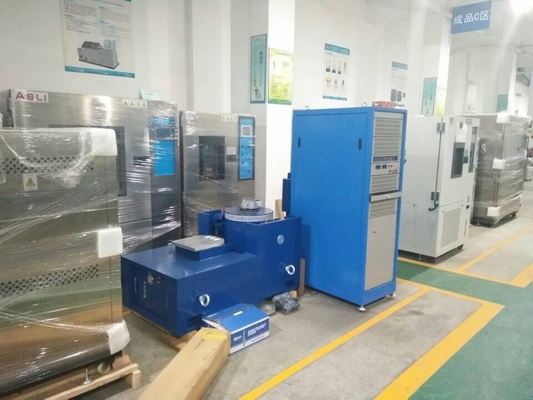

Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 2
Detailed Product Images

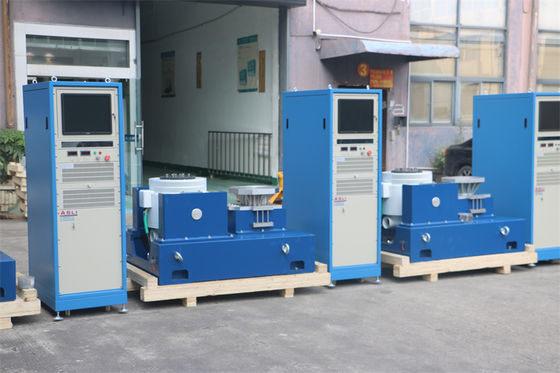

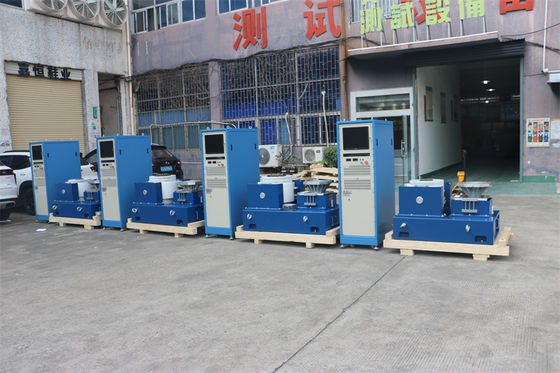

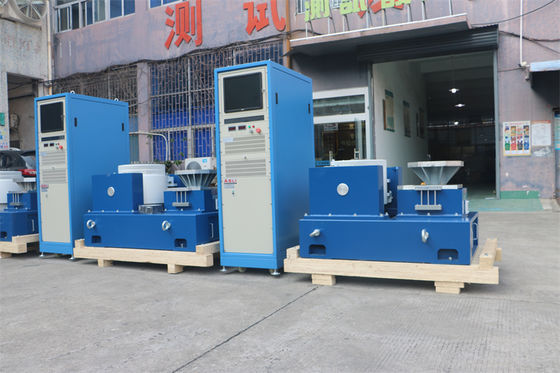

Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 3 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 4 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 5 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 6 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 7 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 8
Our Service Commitment
  • High quality guarantee with 12-month warranty
  • Professional documentation with shipment
  • Custom packing available with pre-shipment photos
  • Prompt response within 48 hours and solutions within 3 working days
  • Dedicated after-sales service from our engineering team
Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 9 Carton Package Shipping Transport Simulation Vibration Tester with 5Hz to 3500Hz Frequency Range and 1000m/s2 Max Acceleration 10
With 28 years of experience in testing equipment manufacturing, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our lab package simulated vibration test equipment with slip table is CE certified.
Contact us for more information about our Carton Package Shipping Transport Simulation Vibration Tester and other testing solutions.
