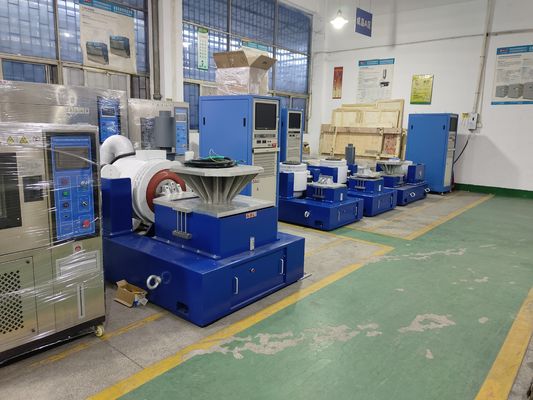

Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed

1
MOQ
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Gamma di frequenza: da 5Hz a 3500Hz
Max. Accelerazione: 1000m/s2
Max. VELOCITÀ: 1,6 m/s
Spostamento di impatto: 25 mm
Peso della bobina mobile: 6,5 kg
Direzioni di vibrazione: Verticale e orizzontale
Onda di vibrazione: seno, casuale, shock
Dimensione della bobina in movimento: Dia. 230 mm
Tipo di potenza: Elettronico
Forza sinusoidale nominale: 6000n
forza casuale stimata: 6000n
Accelerazione nominale: 1000m/s2
Velocità nominale: 1,6 m/s
Spostamento nominale: 25 mm
Max. Loading: 180 kg
Evidenziare:

5Hz to 3500Hz Frequency Range Vibration Shaker System

,

1000m/s2 Max Acceleration Electrodynamic Vibration Test System

,

1.6m/s Max Speed Electromagnetic Vibration Shaker Table
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: ASLI
Numero di modello: ES-6
Termini di pagamento e spedizione
Descrizione di prodotto
Electromagnetic Vibration Shaker Table
The Electromagnetic Vibration Shaker Table performs sinusoidal vibration tests, broadband random vibration tests, and classic pulse tests (half sinusoid, trapezoid, back peak saw tooth) including shock response spectrum tests. It can be integrated with climate chambers for comprehensive mechanical and environmental condition testing.
This high-frequency vibration test system is extensively used in defense, weapons, aerospace, communications, electronics, appliances, transportation, and household goods industries. Custom configurations are available for multi-environment testing requirements.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 0
Vertical Expander Features
VT vertical extended-bench with precision-calculated clamps ensures optimal performance through perfect structure, high-quality materials, and superior workmanship.
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 1
Horizontal Expander Features
  • Enables higher acceleration and working frequency with small loading bench
  • Improves overall machine bench loading capacity and performance
  • Integral design with vibration bench for easy installation and adjustment
  • Static pressure track with V-shape design resists slope and bias loading
  • Built-in oil pump for convenient operation and maintenance
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 2
Product Gallery
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 3
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 4
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 5
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 6
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 7
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 8
Our Company
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 9
With 28 years of experience, we specialize in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our lab package simulated vibration test equipment with slip table is CE certified.
Packing & Delivery
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 10
Our Service
  • High quality guarantee on all products
  • Professional documentation with all shipments
  • Custom packing available with pre-shipment photos
  • Prompt response within 48 hours with solutions in 3 working days
  • Dedicated engineering support for after-service
  • 12-month warranty period on all equipment
Exhibition
Electromagnetic Vibration Shaker Table with 5Hz to 3500Hz Frequency Range 1000m/s2 Max Acceleration and 1.6m/s Max Speed 11
Contact us today for more information about our Electromagnetic Vibration Shaker Table and other testing equipment solutions.
